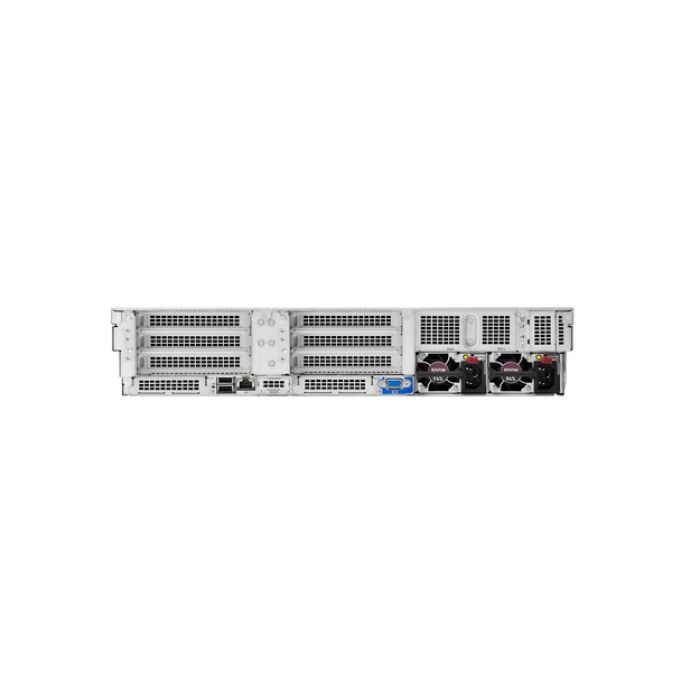

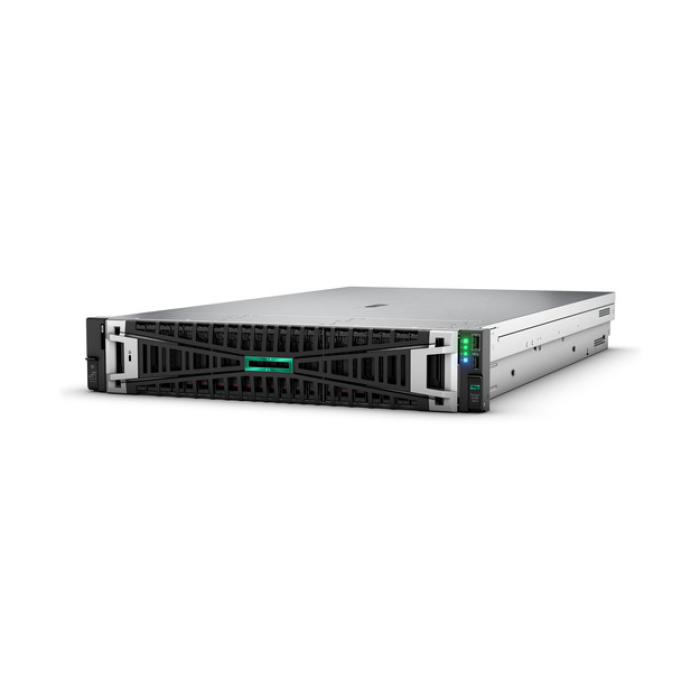

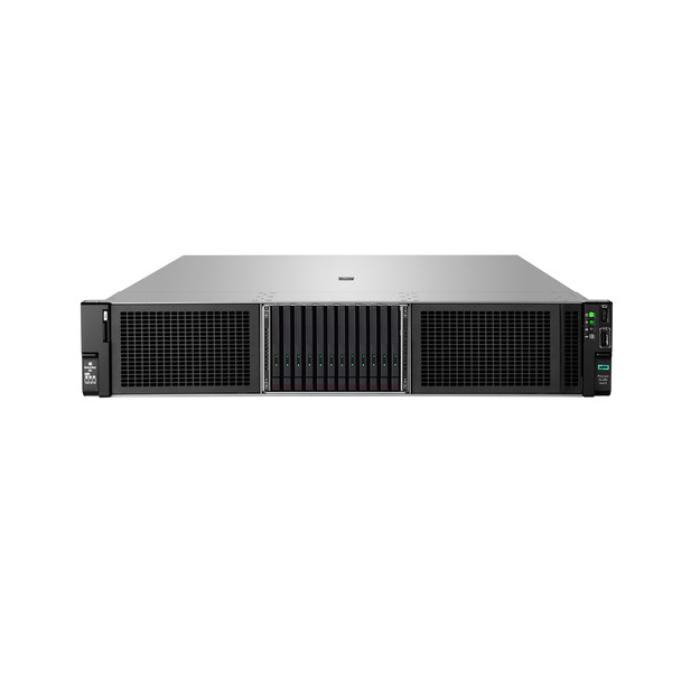

HPE DL380 G11 6530 2x32G 8SFF SSD EU Svr
Marka: HPE
Barkod: 190017795256
Are you looking for a dual-socket scalable server solution to power data analytics or hybrid cloud workloads? The HPE ProLiant DL380 Gen11 server is a scalable 2U 2P solution that delivers exceptional compute performance, memory density with scalability and high-speed data transfer rate to run your most demanding applications. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 64 cores, 8 TB of memory, and 20 EDSFF drive as well as increased memory bandwidth and high-speed PCIe Gen5 I/O, the HPE ProLiant DL380 Gen11 server is a perfect solution for software-defined storage, video transcoding, and virtualized apps. The HPE ProLiant DL380 Gen11 server is engineered to optimize IT with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
Yeni destekleme noktası nedir:
Powered by the 4th and 5th Gen Intel Xeon Scalable Processors with next-generation technology that support up to 64 cores at 350W and 16 DIMMs for DDR5 memory at speeds up to 5600 MHz.
Support for up to 8 TB total DDR5 memory with 16 DIMM channels per processor delivers increased performance, lower power requirements, and High Bandwidth Memory (HBM) support.
Support for PCIe Gen5, resulting in improved bandwidth, advanced data transfer rates, and higher network speeds from the PCIe Gen5 serial expansion bus.
Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
Supports hot-pluggable, high-availability RAID M.2 boot options.
Supports up to eight single-wide (SW) or three double-wide (DW) GPUs to accelerate graphic intense workloads.
Teknik Özellikler
| Marka | HPE |
| İşlemci ailesi | Intel® Xeon® Gold |
| İşlemci üreticisi | Intel |
| İşlemci frekansı | 2,1 GHz |
| İşlemci önbelleği | 160 MB |
| Yüklü işlemcilerin sayısı | 1 |
| İşlemci ön bellek türü | L3 |
| RAM | 64 GB |
| Dahili hafıza tipi | DDR5-SDRAM |
| Hafıza frekans hızı | 5600 MHz |
| Bellek düzeni | 2 x 32 GB |
| Toplam depolama kapasitesi | 960 GB |
| Optik sürücüler | Hayır |
| Sert durum disk sürücü, kapasite | 480 GB |
| Sert durum disk sürücüsü arayüzleri | SATA III |
| Desteklenen RAID kontrol birimleri | HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller |
| LAN kontrolörü | Broadcom BCM57414 |
| Ethernet LAN bağlantısı | Evet |
| Ethernet arayüz türü | 25 Gigabit Ethernet |
| Ethernet LAN (RJ-45) port sayısı | 2 |
| Kasa | Yatay (2U) |
| Yönetim özellikleri | HPE iLO Standard with intelligent provisioning (embedded), and HPE Compute Ops Management (optional subscription available) |
| Güvenli platform modülü (TPM) | Evet |
| Güvenilir Platform Modülü versiyonu | 2.0 |
| Güç gereksinimleri | 1000 W |
| Güç kaynağı türü | 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
| Ana güç kaynağı sayısı | 2 |
| Derinlik | 998 mm |
| Yükseklik | 273 mm |
| Ağırlık | 41,3 kg |
| Fiziksel güvenlik | HPE TPM 2.0 standard on motherboard. Optional locking Bezel Kit, Intrusion Detection Kit. For full security features refer to the QuickSpecs. |
| Desteklenen işlemci sayısı | 1 |
| Genişletme yuvaları | Up to 8 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs |
| Standart fanlar | 6x High Performance Fan |
| Boyutlar (G x D x Y) | 599,9 x 998 x 273,1 mm (23.6 x 39.3 x 10.8") |
| Dahili sabit disk sürücüsü | 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
| Ağırlık (imperiyal) | 41,3 kg (91.1 lbs) |

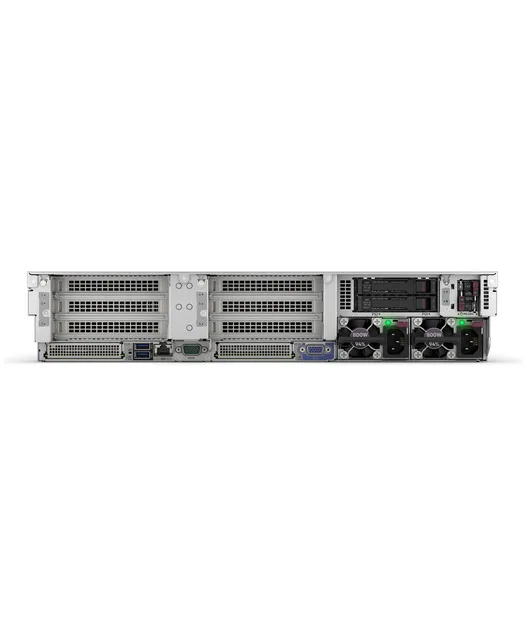

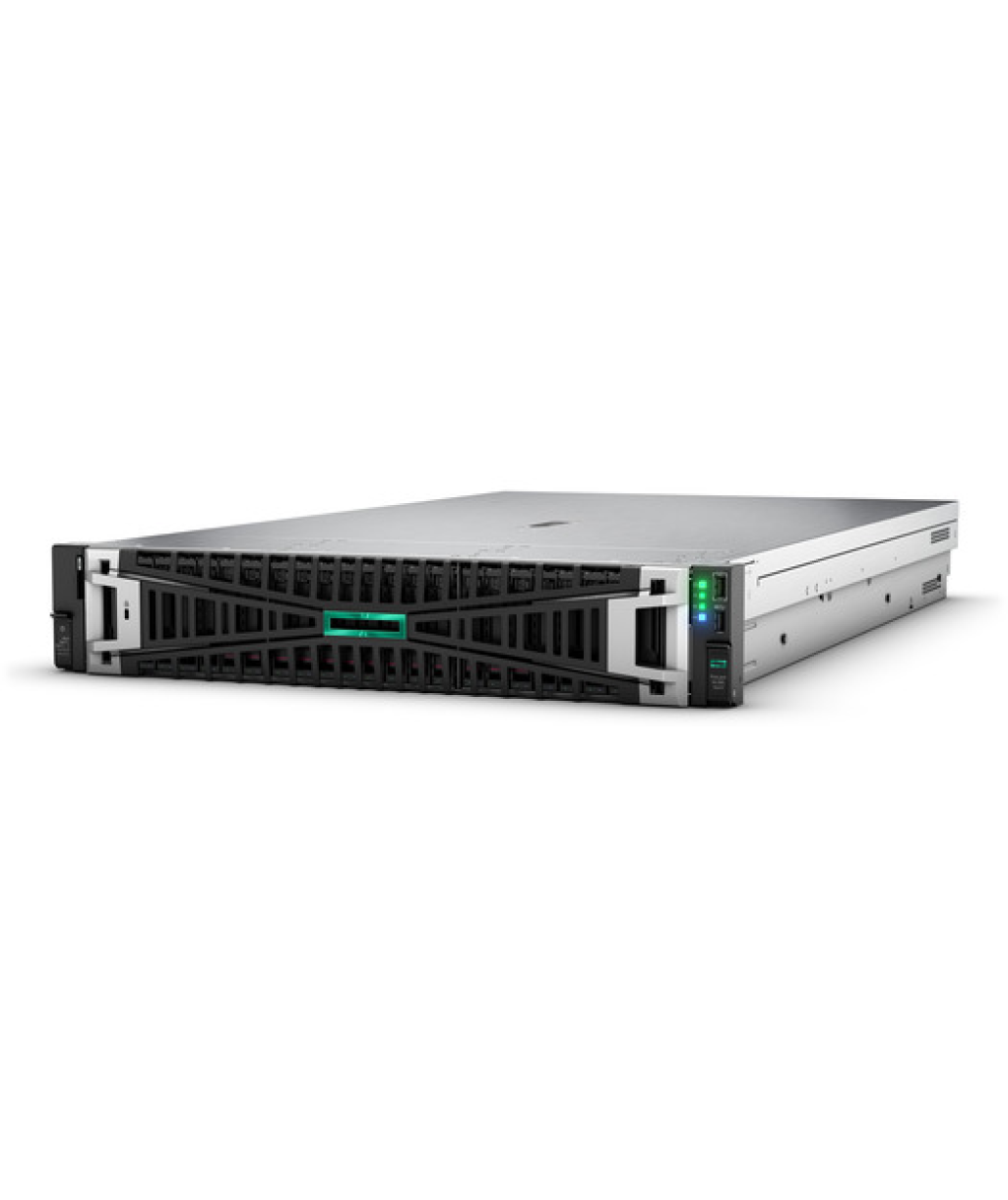

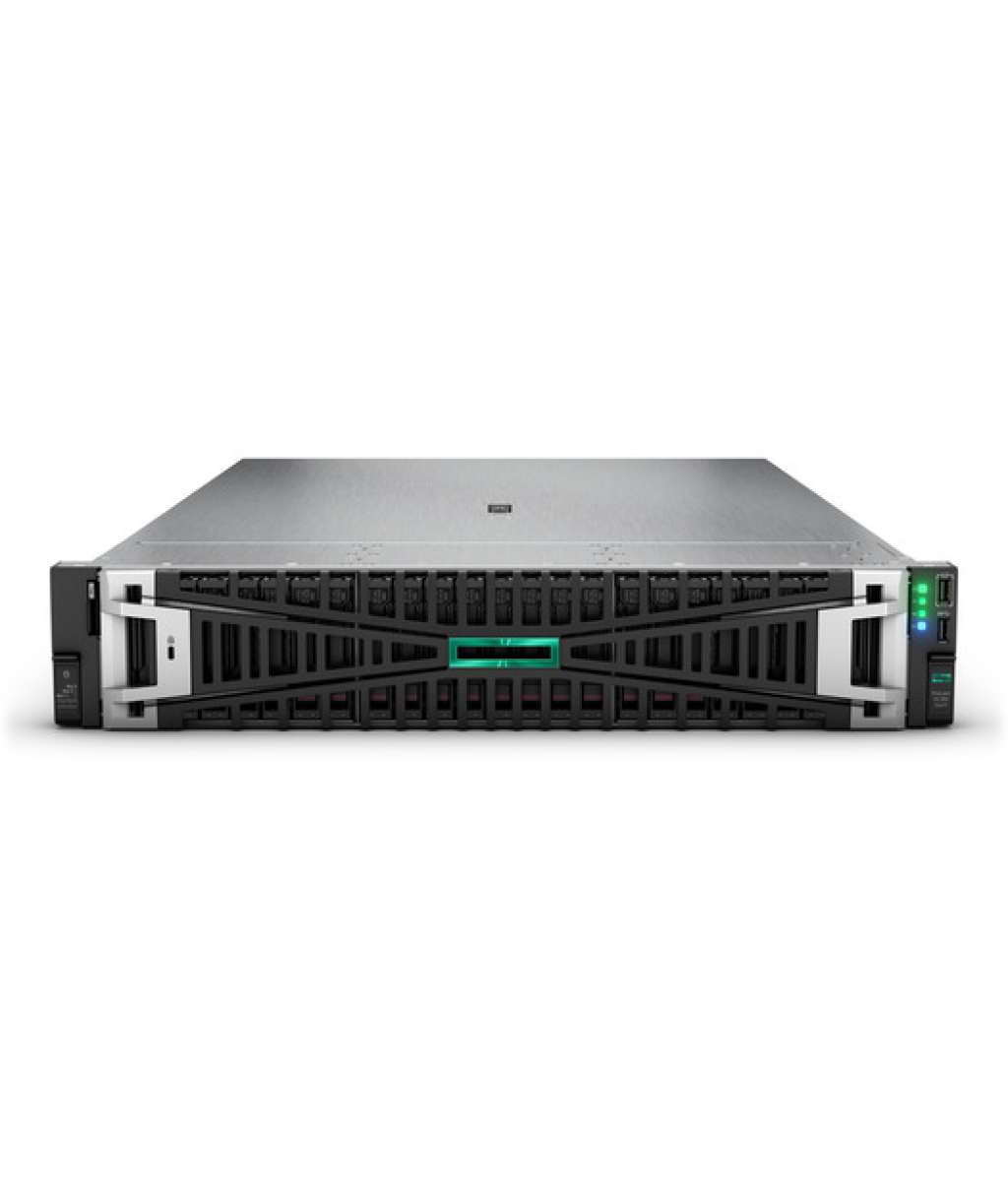

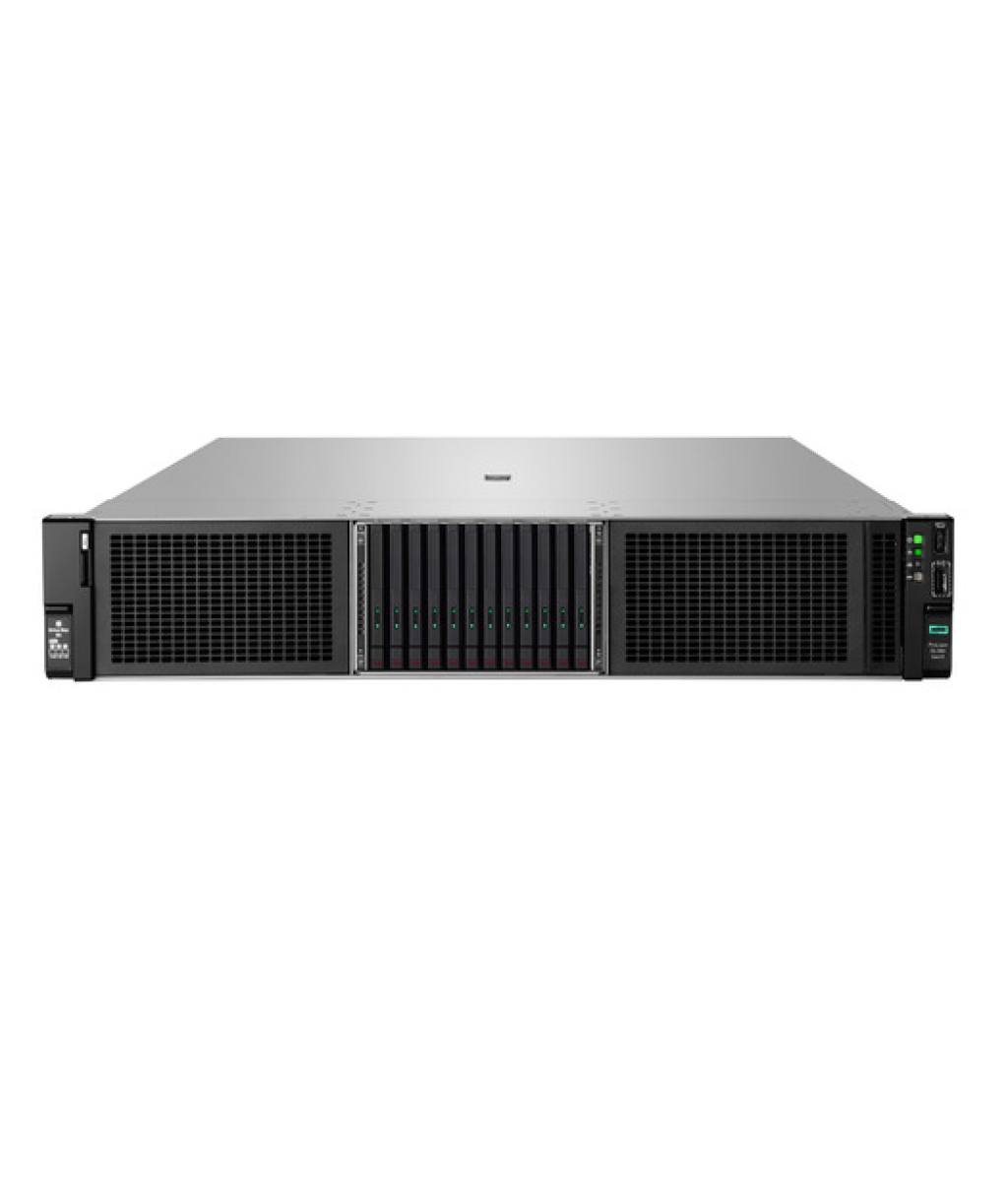

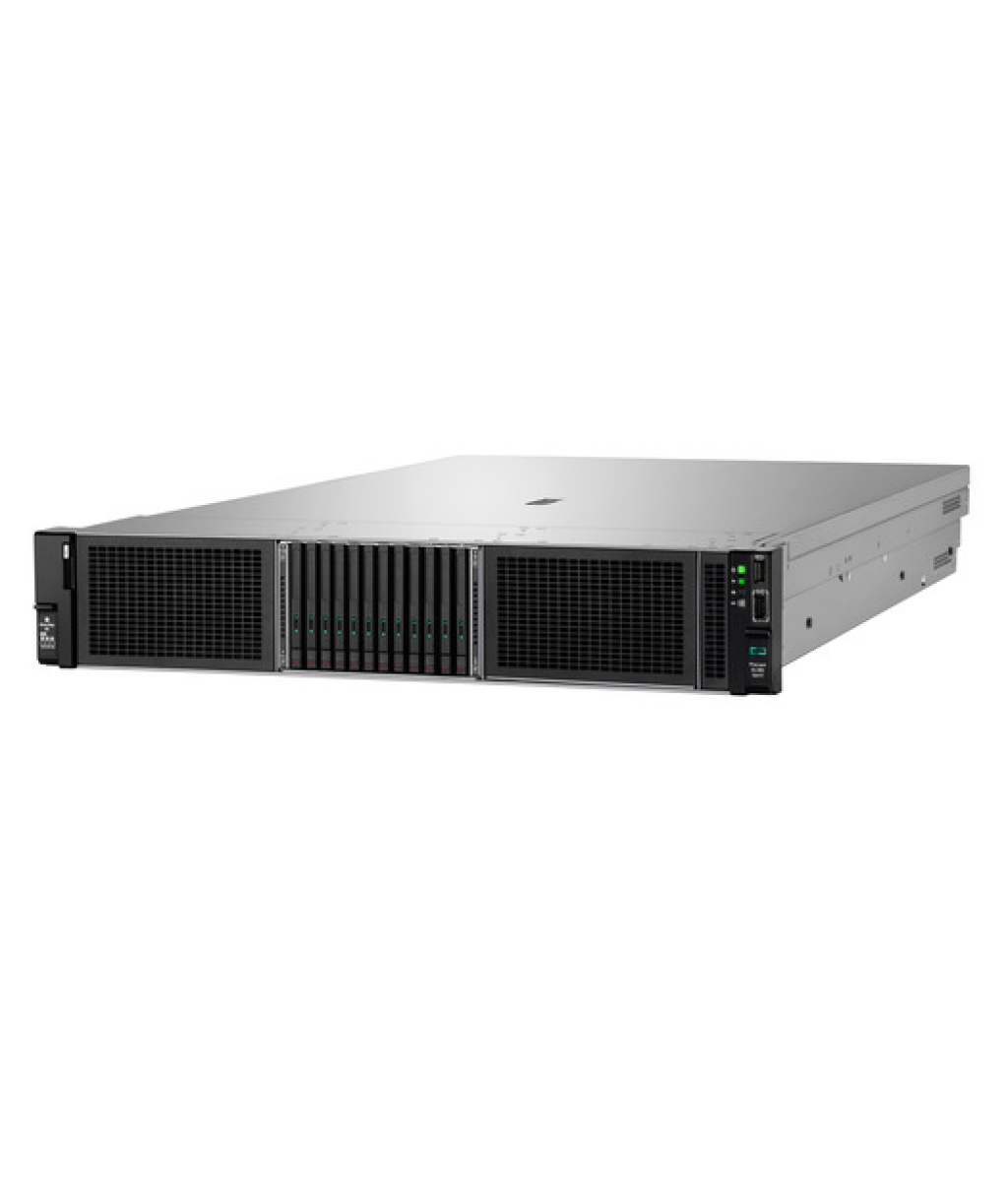

Ürün Görselleri
